・It is very useful for non contact air coupled ultrasonic measuring method.
・It can also be used with our Pulsar Receiver (JPR series).

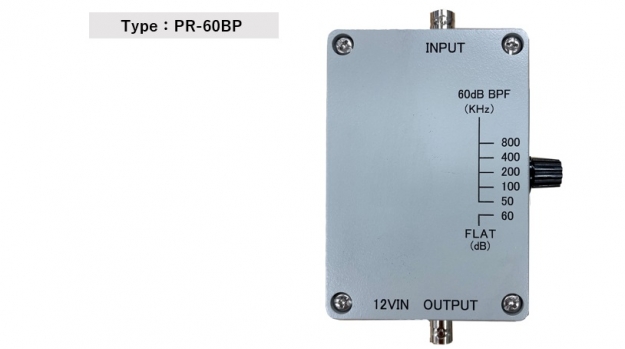

＜PR-60BP：Standard model＞
・Gain：60㏈（can be changed）
・BPF： FLAT, 50, 100, 200, 400, 800 kHz（can be changed）
・Frequency characteristics：0～3MHz
・Operation method：Double probe transmission method、Single probe reflection method
・I/O interface：Probe side　BNC（can be changed）
　　　 　　　 Pulser & Receiver side　BNC
・Power supply：DC12V（DC jack）
・Dimension：66(W) × 100(D) × 47(H) mm
・Weight：320 g
・Supplied accessory：DC cable、BNC cable for Pulser & Receiver

In addition, the PR-60A is also available, which is for Pulser & Receiver with 6-pin Ext-amp connector.

※Please contact us with any inquiries about customization, including frequency bandwidth and number of channels.
